How a Mixer Grinder Works
A screaming universal motor, a four-point steel star, and a jar full of vortex — how the Indian kitchen workhorse grinds spice to dust at 20,000 RPM.
Step 01 of 07
The kitchen workhorse

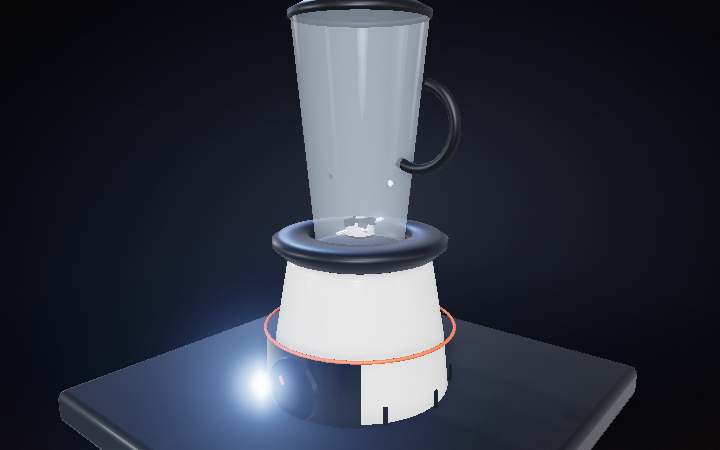

Every Indian kitchen has one, and it earns its keep: idli batter, coconut chutney, dry turmeric, wet masala — all pulverised by the same little machine. It is really just three parts stacked in a line: a motor in the body, a jar on top, and a four-point steel blade in the floor of that jar. Watch the blade already blurring behind the glass — the motor underneath is spinning it near twenty thousand times a minute.
Step 02 of 07
How power crosses the gap
Lift the jar off and you find the trick to why nothing leaks and everything still spins: the motor and the blade never touch. A cross-shaped drive coupler on the body top slots into a matching socket under the jar. Seat the jar and the two lock together; the motor turns the coupler, the coupler turns the blade — while a rubber seal keeps your chutney out of the machine.
Step 03 of 07
A motor that screams
The body turns to glass. Inside is a universal motor — the same breed that howls in a vacuum cleaner or an angle grinder. A spinning armature sits between two field coils, and here is the clever part: those coils are wired in series with the armature, so the very same current flows through both. Reverse it — as household AC does fifty times a second — and both halves reverse together, so the push never flips. That is why it runs happily on AC or DC, and why, with almost no load, it revs to a screaming 20,000 RPM.
Step 04 of 07
Flipping the current, 600 times a second
Down at the base of the armature is the commutator: a ring of copper bars split by insulating gaps, with two carbon brushes pressing on opposite sides. As the armature spins, each brush slides from bar to bar, and every half turn the gap sweeps past and the current through that coil reverses. That constant, perfectly-timed flip is what keeps every coil pushing the same way round instead of fighting itself — hundreds of switches a second, done by nothing cleverer than a sliding contact.
Step 05 of 07
The blade makes a whirlpool
The four-point blade is not just a set of knives — it is a pump. Two arms tilt up and two tilt down, so as it spins it flings food outward and drives a vortex that drags everything from the top of the jar down into the cutting zone, again and again. Nothing sits still long enough to escape: the swirl keeps feeding the centre until batter is smooth and spice is dust.
Step 06 of 07
One knob, three speeds
Blend, mix, grind, and a pulse — the knob picks the job. It does not throttle the power like a dimmer; it taps the field coil at different points, switching how many turns of wire the current sees. More turns means a stronger magnetic field, which — counter-intuitively for a series motor — holds the speed down for heavy grinding. Tap off some turns and the field weakens, letting the armature race away for light, fast blending.
Step 07 of 07
Grind it
Jar on, lid down, knob to grind: current pours through the field coils and the armature in series, the commutator flips it half-turn by half-turn, the coupler hands the spin to the blade, and the blade whips the whole jar into a vortex. Three simple parts in a line — motor, coupler, blade — turning electricity into a plume of fine powder in seconds.
